Crystal structures of betulin and its derivatives

Elwira Chrobak 1Ewa B. Bębenek 1Ewa Michalik 1Maria Jastrzębska 2Joachim Kusz 2Stanisław Boryczka 1

1. Department of Organic Chemistry, The Medicial University of Silesia, Jagiellońska 4, Sosnowiec 41-200, Poland
2. University of Silesia, Institute of Physics, Uniwersytecka 4, Katowice 40-007, Poland

Betulin [lup-20(29)-ene-3β,28-diol, C30H50O2] (1), also known as betulinic alcohol, is a pentacycylic triterpene of the lupane type which was one of the first natural products indentified and isolated from plants as a pure chemical substance in 1788 by Lowitz [1]. The high content of betulin (up to 30%) in white birch bark and the ease of its isolation in almost any amount, make it important starting material for synthesis of new compounds.

The still growing interest in betulin (1) and its derivatives results from their wide spectrum of biological activities such as: anticancer, antiviral, antibacterial or hepatoprotective properties [1-3]. The structure of 1 is based on a 30-carbon skeleton comprising of four 6-membered rings and one 5-membered ring. Betulin (1) has three available sites for simple chemical modification, namely: secondary hydroxyl group at position C-3, primary hydroxyl group C-28 and isopropenyl  side chain at position C-20. These group and their positions, mutual distance and orientation with respect to the rings can influence hydrogen bonding and the interctions of betulin derivatives with active sites of surrounding species. Despite the fact that betulin has been known for over 200 years, the X-ray structure of this compound was investigated for first time by Drebushchak and Boryczka as betulin-EtOH and betulin-DMSO solvates, respectively [4,5]. Various solvent used in the crystallization process and different melting points reported may indicate the existence of several crystal polymorphic forms of betulin. It is well know, that the large numbers of natural molecules are capable of exhibiting polymorphism or solvatomorphism [6]. More importantly, different polymorphic forms of pharmaceutical compounds display varying physicochemical properties, such as: solubility, stability, density as well as bioavailability, particularly when the drug substance is poorly soluble.

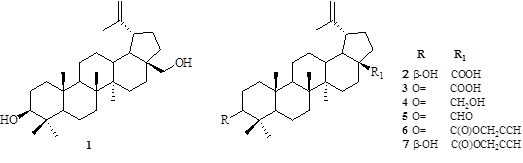

In the present work, we describe the synthesis and X-ray crystal structures of the betulinic acid (2), betulonic acid (3), betulone (4), betulonal (5) and new acetylenic derivatives of betulin (6,7) in order to gain better understanding of the structure-activity relationship of these important molecules.

[1] J.T. Lowitz, Crell's Chem Ann 1 (1788) 312

[2] S. Alakurtti, T. Makela, S.Koskimies, J. Yli-Kauhaluoma, Eur J Pharm Sci 29 (2006) 1-13

[3] T.G. Tolstikova, I.V. Sorokina, G.A. Tolstikov, A.G. Tolstikov, O.B. Flekhter, Russ J Bioorg Chem 32 (2006) 291-307

[4] T.N. Drebushchak, M.A. Mikhailenko, M.E. Brezgunova, T.P. Shakhtshneider, S.A. Kuznetsova, J Struct Chem  51 (2010) 798-801

[5] S. Boryczka, E. Michalik, M. Jastrzębska, J. Kusz, M. Zubko, E. Bębenek, J Chem Crystallogr 42 (2012) 345-351

[6] C.G. Wermuth, The practice of medicinal chemistry (2008) Elsevier Amsterdam  760-761
