Morphologies and photoluminescence properties of porous n-InP in acidic liquid ammonia

Alexandra Eb ,  Anne-Marie Gonçalves ,  Lionel Santinacci ,  Charles Mathieu ,  Arnaud Etcheberry

Lavoisier Institute, CNRS, University of Versailles (ILV), 45 av. des Etats-Unis, Versailles 78035, France

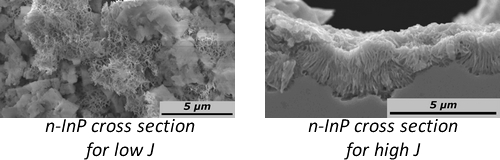

Electrochemical pore formation on n-InP has been firstly been evidenced in HCl by P. Kohl in 1983 [1]. Since then, numerous studies have been carried out and have revealed a strong influence of the electrolyte in the porosification process [2]. Liquid ammonia, due to its low viscosity, low dielectric constant and its strong basic feature, appears to be relevant to investigate the porosification of semiconductors under true water-free conditions [3]. In this work, anodic pore formation of n-InP was performed in acidic liquid ammonia (NH3+NH4Br) by galvanostatic treatments (U-t). Morphologies were characterized by scanning electron microscopy (SEM) and the evolution of optical properties was analysed by ex-situ photoluminescence (PL) with four different wavelengths (442 nm; 488 nm; 514 nm and 633 nm). According to the current density (J) range, two different morphologies have been observed. For low J (<1 mA/cm²) the morphology is comparable to a "sponge", whereas for high J (>1 mA/cm²) to a "coral". The "sponge" morphology is anisotropic; there are only few aperiodic irregularities on the U-t. The pores of the "coral" structure grow tortuously and perpendicularly to the surface in hemispherical depressions. For high J, the periodic lift off of the porous layer is correlated to voltage oscillations and can form multilayered structures [3]. PL experiments combined with SEM characterisation demonstrate that the porosified surfaces exhibit a dead layer behaviour [4]. From these results, the porosification process in this solvent will be explained and compared with those observed in aqueous media.


[1] P.A. Kohl, et al., J. Electrochem. Soc., 130, 2288 (1983)

[2] P. Schmuki, et al., Phys. Status Solidi A, 182, 51 (2000); C. O'Dwyer, et al., J. Electrochem. Soc., 153, G1039 (2006)

[3] A.M. Gonçalves, et al., Electrochem. Solid State Lett., 10, D35 (2007)

[4] D.B. Wittry, et al., J. Appl. Phys., 38, 375 (1967)

Legal notice
  • Legal notice:

    Copyright (c) Pielaszek Research, all rights reserved.
    The above materials, including auxiliary resources, are subject to Publisher's copyright and the Author(s) intellectual rights. Without limiting Author(s) rights under respective Copyright Transfer Agreement, no part of the above documents may be reproduced without the express written permission of Pielaszek Research, the Publisher. Express permission from the Author(s) is required to use the above materials for academic purposes, such as lectures or scientific presentations.
    In every case, proper references including Author(s) name(s) and URL of this webpage: must be provided.


Related papers
  1. Zn(S,O,OH) Chemical Bath Deposited buffer layers for high efficiencies Cu(In,Ga)(S,Se)2 solar cells : a better understanding of the growth mechanism
  2. Synthesis, characterization and electrocatalytical activity of capped platinum nanoparticles

Presentation: Oral at E-MRS Fall Meeting 2007, Symposium B, by Alexandra Eb
See On-line Journal of E-MRS Fall Meeting 2007

Submitted: 2007-05-21 16:08
Revised:   2009-06-07 00:44
© 1998-2022 pielaszek research, all rights reserved Powered by the Conference Engine
